Designed to protect and care for every cell - for use in reseach and lifesciences.
Description
Planers BT37 Mark II Incubator combines providing a consistent and optimal environment for cell development with improved functionality and ease of use ensuring that it helps protect and care for your cell's throughout their culture.
The BT37 Mark II provides precision control of all the parameters required to ensure optimal homeostatic conditions are maintained throughout the whole chamber.
The BT37 Mark II is packed with new and improved features to ensure the incubator is easy and intuitive to use.
Features
Precision control of environmental parameters
Simple and Intuitive to use
Clear touchscreen display
Comprehensive protection
Emergency battery back-up
Remote access for independent monitoring
What's New?
Updated flask design minimises kinking

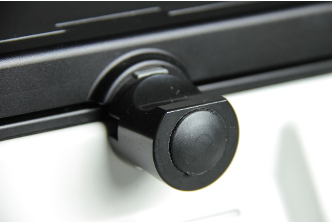

Soft-close hinge and ergonomic latch
Improved touchscreen display

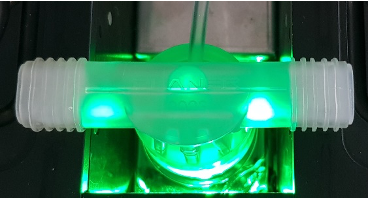

Viewing window monitors gas flow
Specifications
SYSTEM
Dimensions (WxDxH): 436 mm wide x 330 mm deep x 185 mm high
Weight: 17 kg
Storage temperature: -10°C to +60°C
Storage humidity: 5% to 95% relative humidity non-condensing
Storage special instructions: Recharge every 4 months by connecting to the mains power supply for 24 hours
CAPACITY

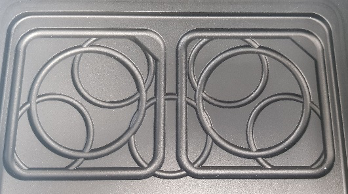

Dishes per chamber:
4 x Nunc® 4 well Petri dishes
10 x Nunc® 35 mm Petri dishes
4 x Minutib 6 well Petri dishes
4 x Falcon® 60 mm Petri dishes
CONTROL
Temperature control range: (ambient + 5°C) to (ambient + 20°C) 40°C max
Temperature measurement accuracy: ± 0.2°C
Temperature control accuracy: ± 0.5°C measured after any transient effects due to set point changes have subsided
Flow control range: 0 ml/minute to 900 ml/minute. Normalized to 0°C, 50% RH
Flow Accuracy: The greater of ±10% or ±3 ml/minute
Flow control accuracy: The greater of ±10% or ±2 ml/minute measured after any transient effects due to set point changes have subsided
GAS SUPPLY
Gas supply: Premixed gas. Typically 6% CO₂, 5% O₂, 88% N₂
Supply pressure: 1.5 bar ± 0.5 bar
Connectors: SWAGELOK® 1/4″ tube fitting
MONITORING
Local area network (LAN): 10 Base T Ethernet – RJ45 shielded Modbus TCP-IP protocol
Independent temperature monitoring: Independent sensors can be fitted to the monitoring ports
Recommended sensor type: PT100 Class A DIN EN60751
Maximum number of sensors: 6
POWER
Power requirements: 100–240V, 50/60Hz, 2 A
Internal battery specification: Gel lead acid backup battery 12V x 2 Ah
