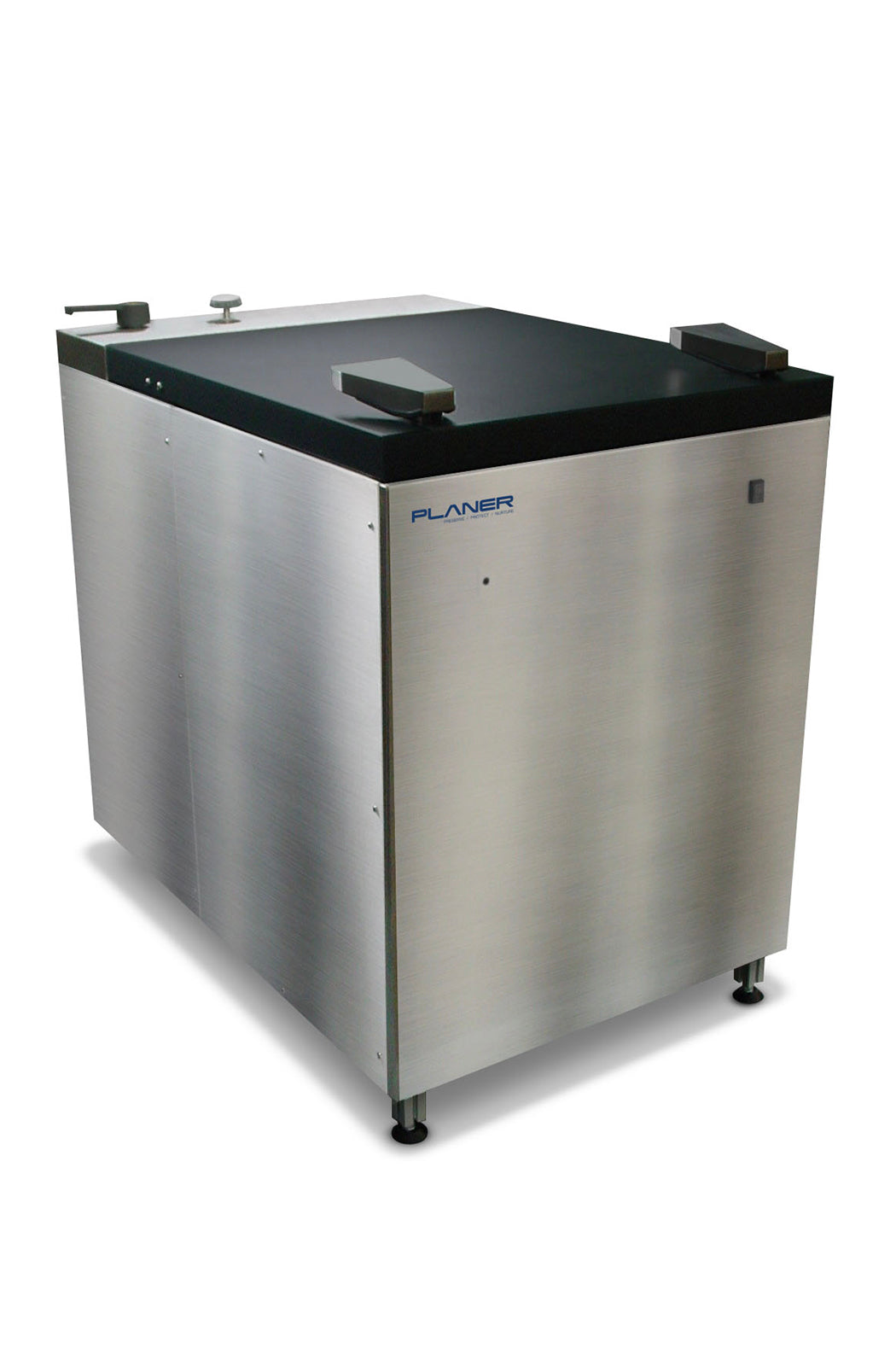

Kryo 1060 Controlled Rate Freezer
Description
Designed to accommodate demanding laboratory workloads, this controlled-rate freezing system provides sample capacity suitable for high-throughput processing environments.

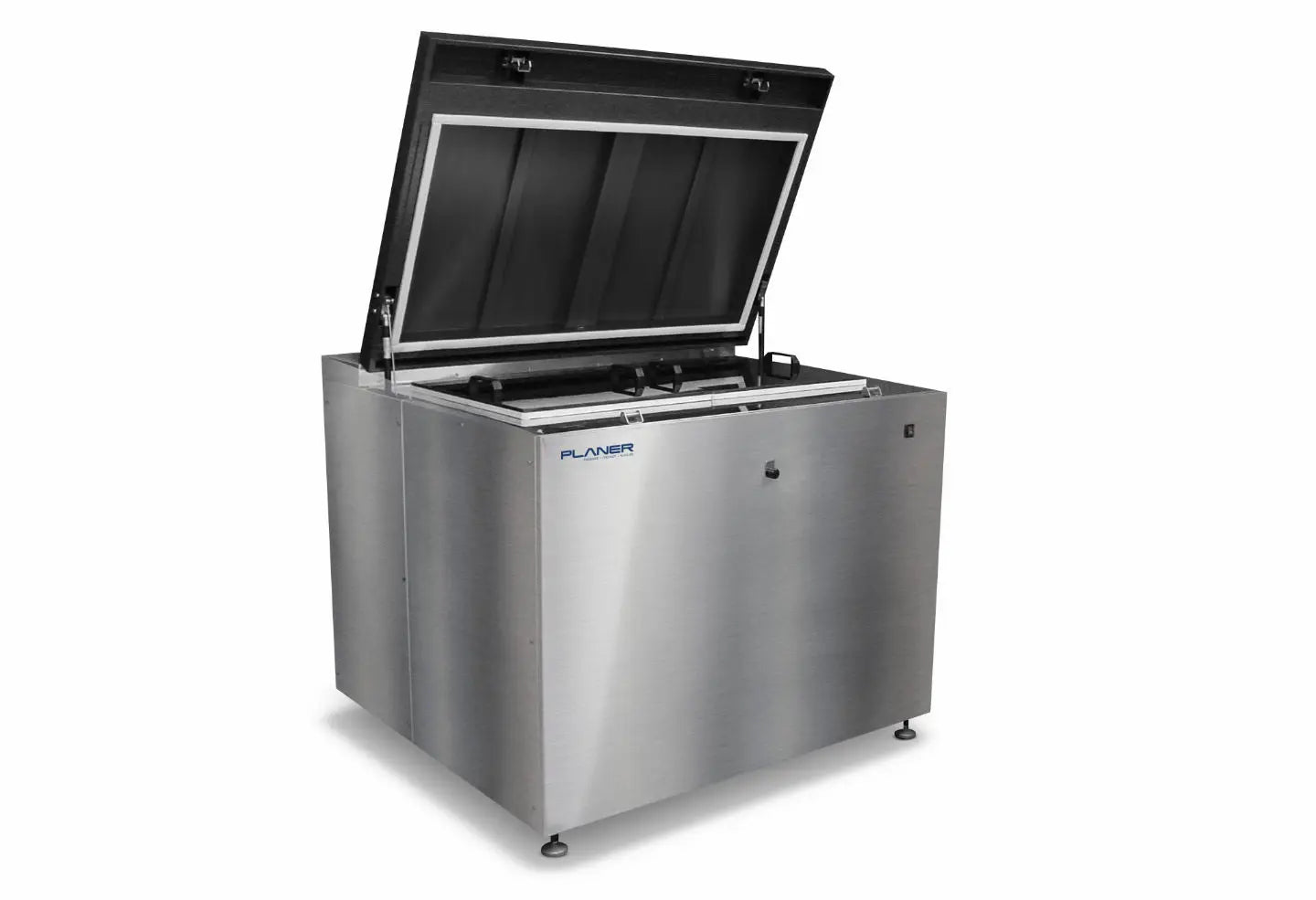

Its top-loading chamber design works in combination with a specialised forced laminar-flow cooling system and advanced cryogenic insulation to deliver stable, uniform temperature control throughout every stage of the freezing cycle. The durable stainless-steel construction provides both long-term reliability and easy wipe-clean maintenance for busy laboratory settings.
The system is particularly well suited to applications such as large-volume cell line preservation and vaccine storage. With an end temperature of -100°C, it helps maintain sample stability and integrity during transfer into long-term cryogenic storage conditions. Integrated safety protections further support secure and reliable operation during critical freezing procedures.
The MR7 controller provides multi-level password-protected access, helping laboratories maintain controlled user management and process security. WiFi connectivity enables automated status updates and alarm notifications via email, while extensive profile storage allows operators to save and quickly access validated freezing protocols tailored to their applications.
Uses
The Kryo 1060 larger controlled rate freezer range is useful in areas such as:
- Biobanks
- Cell Based Pharmaceutical
- Biotechnology
- Medical Researchers
- Blood and Tissue Banks
- Biorepositories
- Translational Medicine
- Regenerative Medicine
Features
- Menu driven controller, simple to programme and easy to operate
- Unique forced laminar flow pattern allows even and accurate temperature control
- Multiple safety features to protect against power and PC failure
- Validation offered via controller password-controlled access on multiple user levels
- Updates and alerts emailed via Wi-Fi to your PC or phone providing peace of mind
- Unlimited* freezer profile storage enabling the operator to select optimum processing conditions *SD Card has 8GB storage, enough for 6 million profiles or 80,000 Kryofiles.
Specifications
| Chamber Volume | 180 or 380 Litres |
| Temperature Range | +40°C to -100°C |
| Heating Rates | 0.01°C to 1°C /min |
| Cooling Rates | -0.01°C to -5°C /min |
| System Controller | Planer MR7 Controller |
- Copes with temporary power/system outs
- Time and date stamping
- Programme preview before run
- High capacity LN2 cylinder: large cooling reservoir - extended hold times
