The Fusion operates as a stand-alone unit and requires no on-going liquid nitrogen supply or connection to an external source
Description

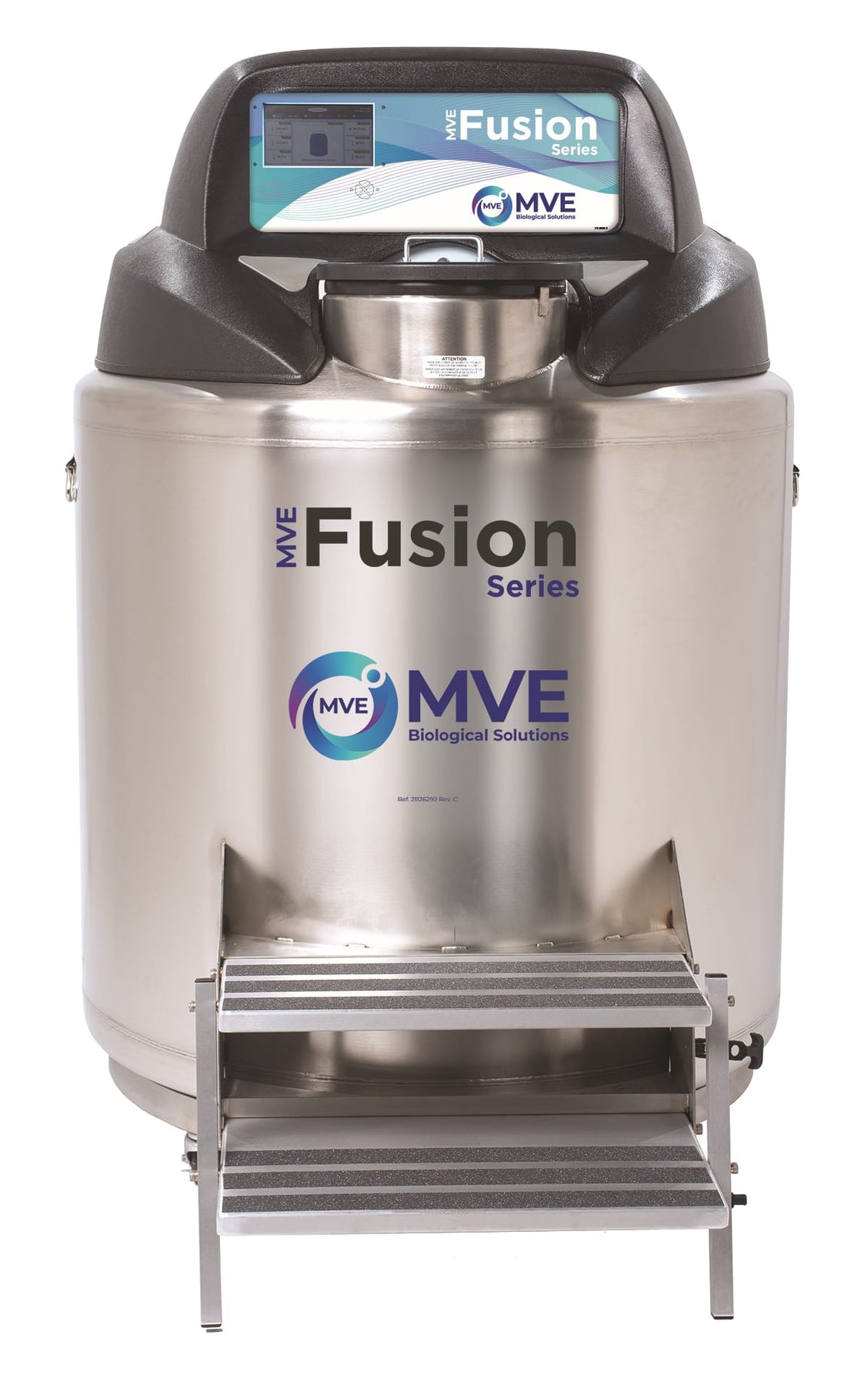

The Fusion cryogenic freezer helps you protect your patients or research by providing constant and reliable cold storage.

Thanks to our innovative Qdrive cryo-cooler technology, there’s no need for a regular ongoing liquid nitrogen supply or a connection to an external source. So, you could be in a remote location, an isolated room or a high-elevation facility – and this self-sustaining cryogenic freezer will keep your samples safe. The Fusion eliminates the infrastructure associated with bulk tanks and vacuum-jacketed piping. It minimises lab intrusion caused by LN2 dewar resupply. This is cryogenics with certainty.

Features
  • Capacity for up to 31,200 1.2/2ml vials.
  • Secure for 7 to 10 days hold time in the event of a power outage
  • Low energy consumption
  • Eliminates need for vacuum piping and constant LN2 supply
  • Lowest liftover height and ergonomic design
  • Two tier folding step
  • 2 year warranty on parts
  • 5 year warranty on vacuum
Specification
MVE Fusion Specifications
1.2 & 2mm Vials 31,200
Large Racks (100 cell boxes) 20
Mini Racks (25 cell boxes) 16
No. of Stages per Rack 13
LN2 Capacity (litres) 50



Additional Specifications
Blood Bag Capacities Total Bags
Bags/Frame
No. of Frames
1.2 & 2mm Vials 2296 7 328
Large Racks (100 cell boxes) 1484 7 212
Mini Racks (25 cell boxes) 752 4 188
Shelves per Rack 592 4 148
LN2 Capacity (w/o inventory) (litres) 416 4 104
Brochures
MVE Fusion Series Spec Sheet
