MVE HEco Series
HEco is the Next Generation High Efficiency Freezer Providing Vapor Storage at -190°C with Storage Capacities Ranging from 15,600 to 94,500 Internally Threaded 1.2/2mm Vials.
Description
With their streamlined LN2 plumbing and vacuum jacketed transfer hose, the MVE HEco 800, 1500 and 1800 Series freezers are the most efficient vapor freezers available.
These high efficiency eco-friendly freezers (HEco) incorporate hinged work surfaces that fully enclose all electronics and plumbing to enhance overall safety and usability. The technical and visual improvements combine to create a more aesthetically pleasing freezer that offers greater functionality. As with all of MVE’s cryogenic freezers, the MVE HEco Series freezers provide maximum storage density as well as the longest hold time and highest sample security in the industry.
Features
- Storage capacities ranging from 15,600 to 94,500 internally threaded 1.2/2mm vials
- Fully enclosed wiring and plumbing
- Vacuum jacketed transfer hose
- Dry sample storage
- -190°C top box temperature
- Low liftover height
- Optional battery backup
- Standard gas bypass prevents warm gas from entering freezer during fill
- MVE TS™ touchscreen technology or TEC 3000/TEC 3000 MDD
- 2-year warranty on parts
- 5-year warranty on vacuum
- Conforms to MDD 93/42/EEC, the Medical Device Directive for the EU. Freezer systems UL/C-UL Listed
Specifications

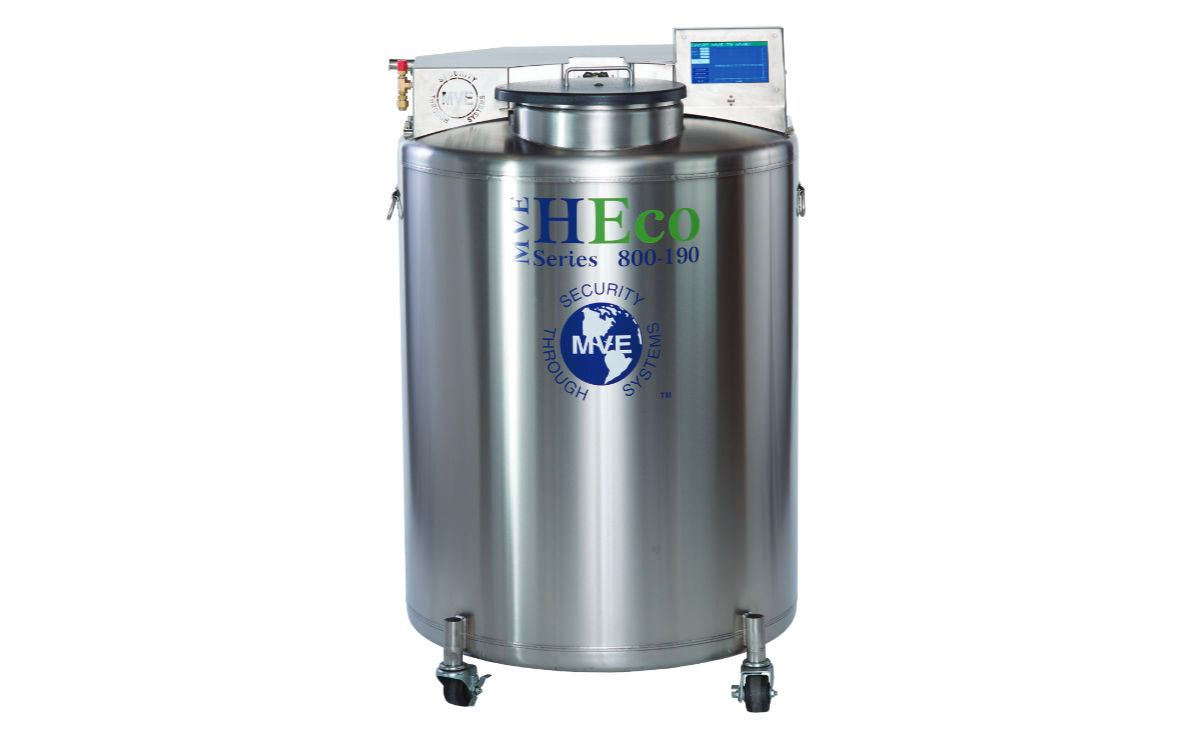

| HEco 800 Series Model | 815P-190 | 818P-190 | 819P-190 |
| 1.2 & 2mm Vials | 15600 | 18200 | 19500 |
| Large Racks (100 cell boxes) | 12 | 12 | 12 |
| Mini Racks (25 cell boxes) | 4 | 4 | 4 |
| Shelves per Rack | 12 | 14 | 15 |
| LN2 Capacity (w/o inventory) (litres) | 349 | 403 | 446 |
| LN2 Capacity (at vapor platform) (litres) | 51 | 55 | 55 |
| HEco 1500 Series Model | 1536P-190 | 1539P-190 | 1542R-190 |
| 1.2 & 2mm Vials | 36400 | 39200 | 42000 |
| Large Racks (100 cell boxes) | 24 | 24 | 26 |
| Mini Racks (25 cell boxes) | 16 | 16 | 16 |
| Shelves per Rack | 13 | 14 | 14 |
| LN2 Capacity (w/o inventory) (litres) | 730 | 768 | 768 |
| LN2 Capacity (at vapor platform) (litres) | 115 | 115 | 115 |

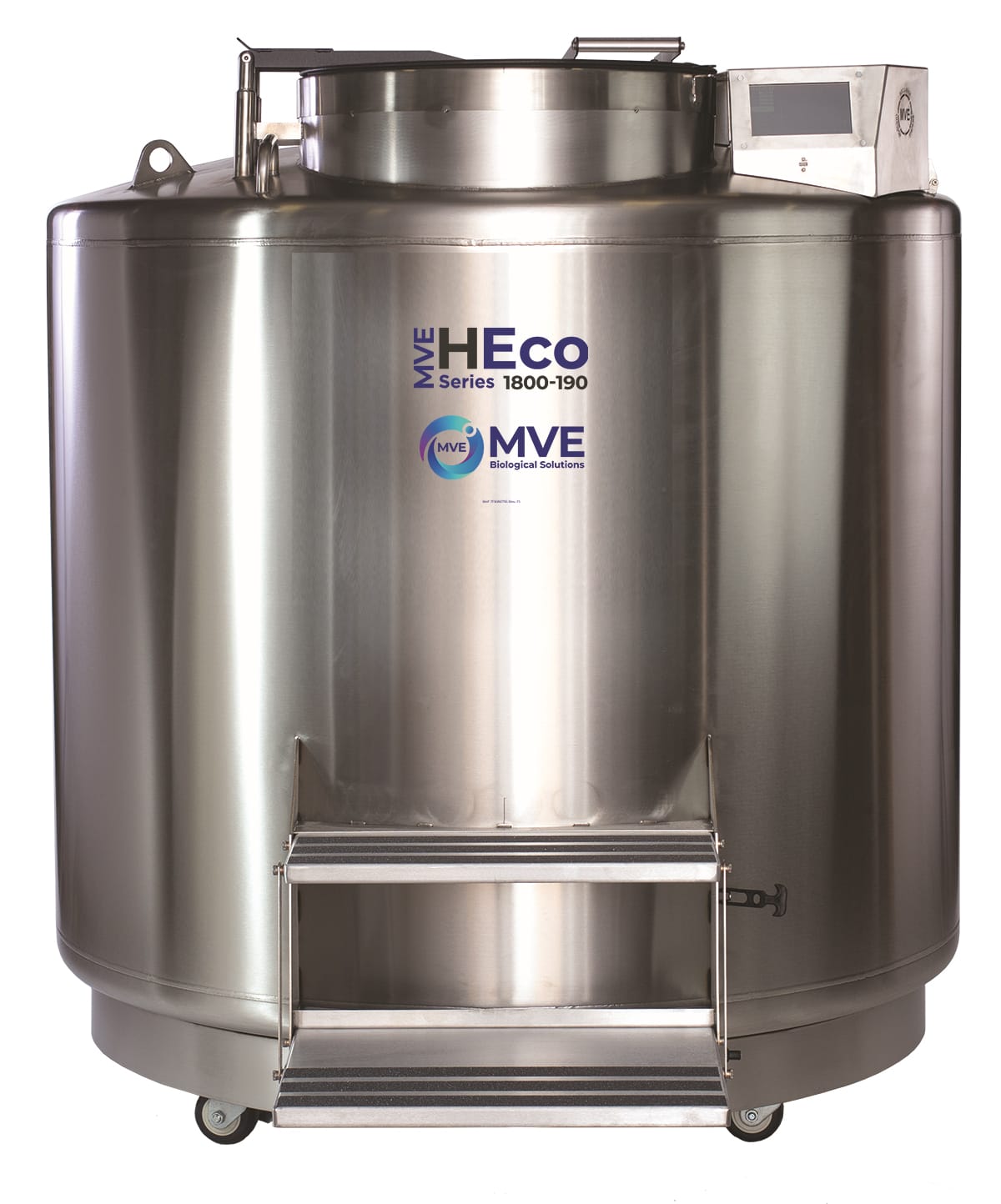

| HEco 1800 Series Model | 1879P-190 | 1881R-190 | 1892P-190 | 1894R-190 |
| 1.2 & 2mm Vials | 79500 | 81900 | 92250 | 94500 |
| Large Racks (100 cell boxes) | 54 | 60 | 54 | 60 |
| Mini Racks (25 cell boxes) | 30 | 12 | 30 | 12 |
| Shelves per Rack | 13 | 13 | 15 | 15 |
| LN2 Capacity (w/o inventory) (litres) | 1516 | 1521 | 1737 | 1732 |
| LN2 Capacity (at vapor platform) (litres) | 292 | 305 | 282 | 300 |
