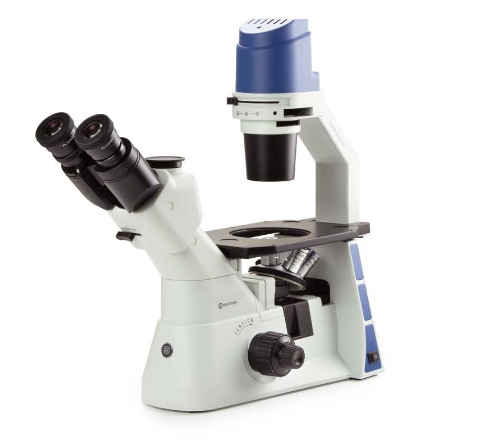

Oxion - Inverted Microscope
Oxion - Inverted Microscope
Oxion - Inverted Microscope
Oxion - Inverted Microscope
Oxion - Inverted Microscope
Oxion - Inverted Microscope

Oxion - Inverted Microscope


Features
  • Life Science applications
  • Observation of tissue cultures, living cells
  • Brightfield, phase contrast and fluorescence
  • Long working distance IOS plan achromatic objectives
  • Revolving quintuple nosepiece
  • 5 W LED transmitted illumination
  • 10 years warranty
Eyepieces

Pair of DIN HWF plan 10x/22 mm eyepieces

Head
  • Trinocular 45° inclined tubes with extended low and high positions for eyepieces
  • One diopter adjustment on left eyepiece
  • Interpupillary distance of 54 to 75 mm
  • Trinocular head with 100-0 % and 0-100 % positions NOSEPIECES Revolving quintuple nosepiece on ball-bearings

B R I G H T F I E L D (models OX.2003-PL and OX.2053-PL)

  • Infinity colour corrected long working distance plan 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives
  • An optional 60x/0.70 IOS objective is also available

P H A S E C O N T R A S T (models OX.2003-PLPH and OX.2053-PLPH)

Infinity colour corrected long working distance plan phase 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives (Photo: OX.9190 Slider with 4x/10x and 20x/40x phase contrast annuli)

F L U O R E S C E N C E  (models OX.2253-PLF and OX.2453-PLF)

Infinity color corrected long working distance plan Fluarex 10x/0.30, 20x/0.45, 40x/0.65 IOS objectives

An optional plan Fluarex 60x/0.75 IOS objective is also available

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Stage

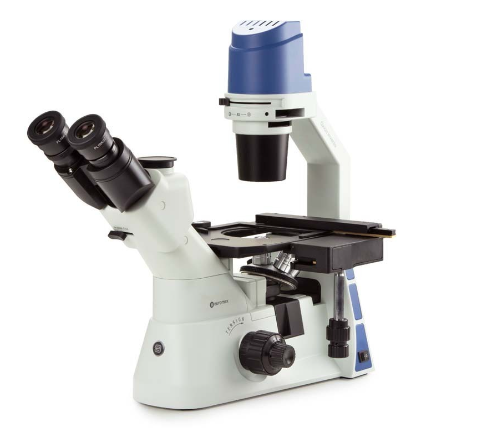

Stage 250 x 230 mm equipped with a coaxial mechanical 120 x 78 mm X-Y stage, delivered with:

  • metallic insert for Ø 35 mm cell culture dish dishes
  • 76 x 26 mm slide holder
  • glass insert with hole optional universal cell culture dish holder (Photo: OX.9599 Universal cell structure dish holder)
Condenser
  • N.A. 0.30 condenser with iris diaphragm. Working distance 72 mm
  • The models for the phase contrast OX.2003-PLPH, OX.2053-PLPH, OX.2253- PLPHF and OX.2453-PLPHF are delivered with a slider with 4x/10x and 20x/40x pre-centred phase rings FOCUSING ADJUSTMENT Coaxial 25 mm coarse and fine adjustments, 2 µm precision and with friction adjustment
Illumination
  • Transmitted 5 W LED Intensity adjustable with internal 100-240 V power supply. Fuse holder 3.15 A / 250 V
  • The fluorescence models are equipped with a reflected 100 W HBO mercury vapor light source with external 100-2



Regular price£9,075.00
/
Shipping calculated at checkout.
  • Shipping from UK - Excludes Duty
